SCHLEBACH – Precision, Flexibility, and German Engineering at Its Best
The QUADRO profiling machine range brings true versatility to metal profiling. It’s designed for workshops that need flexibility, speed, and consistently top-quality results.

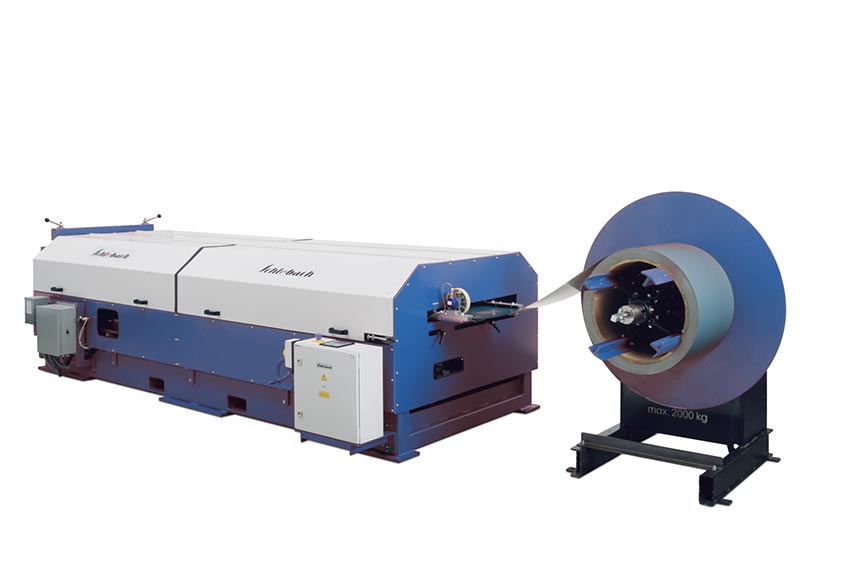

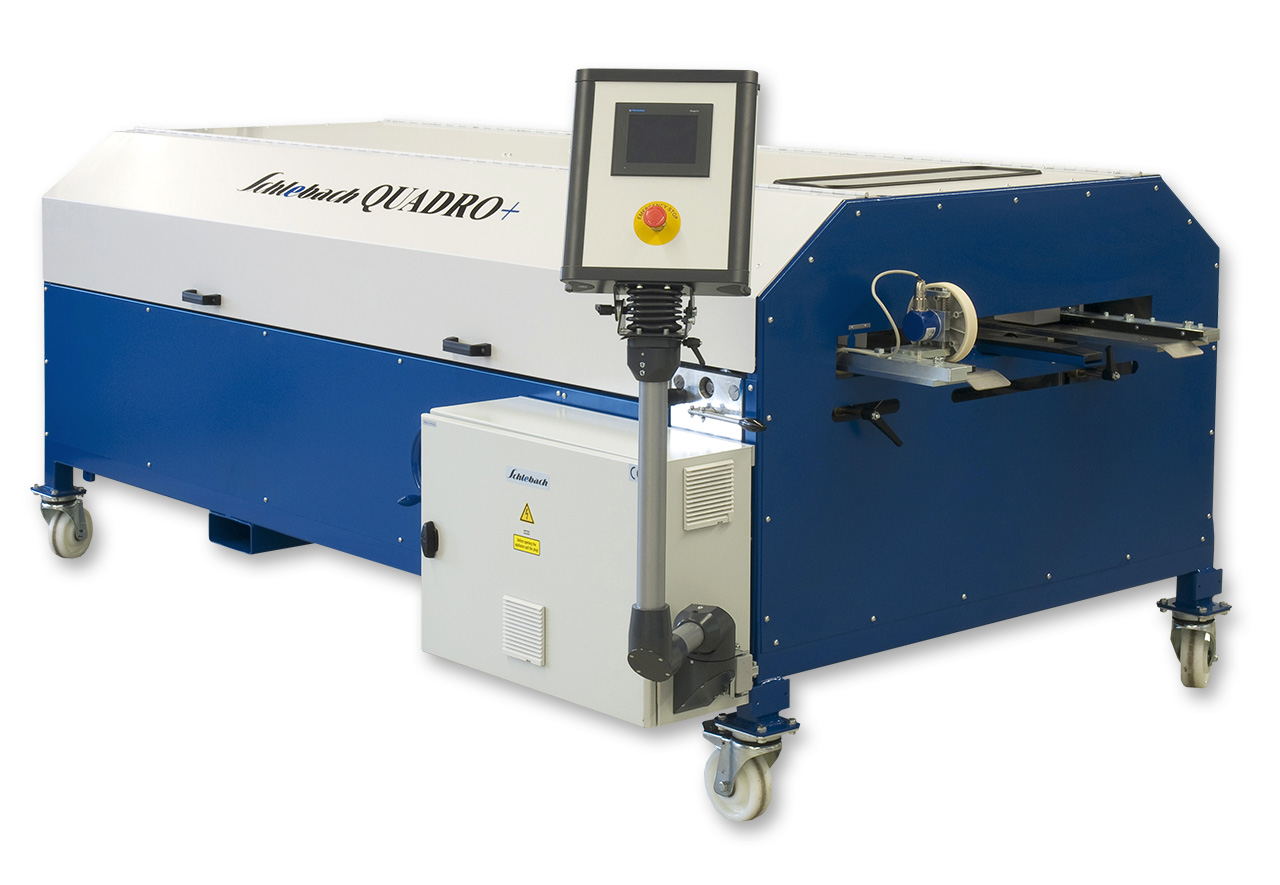

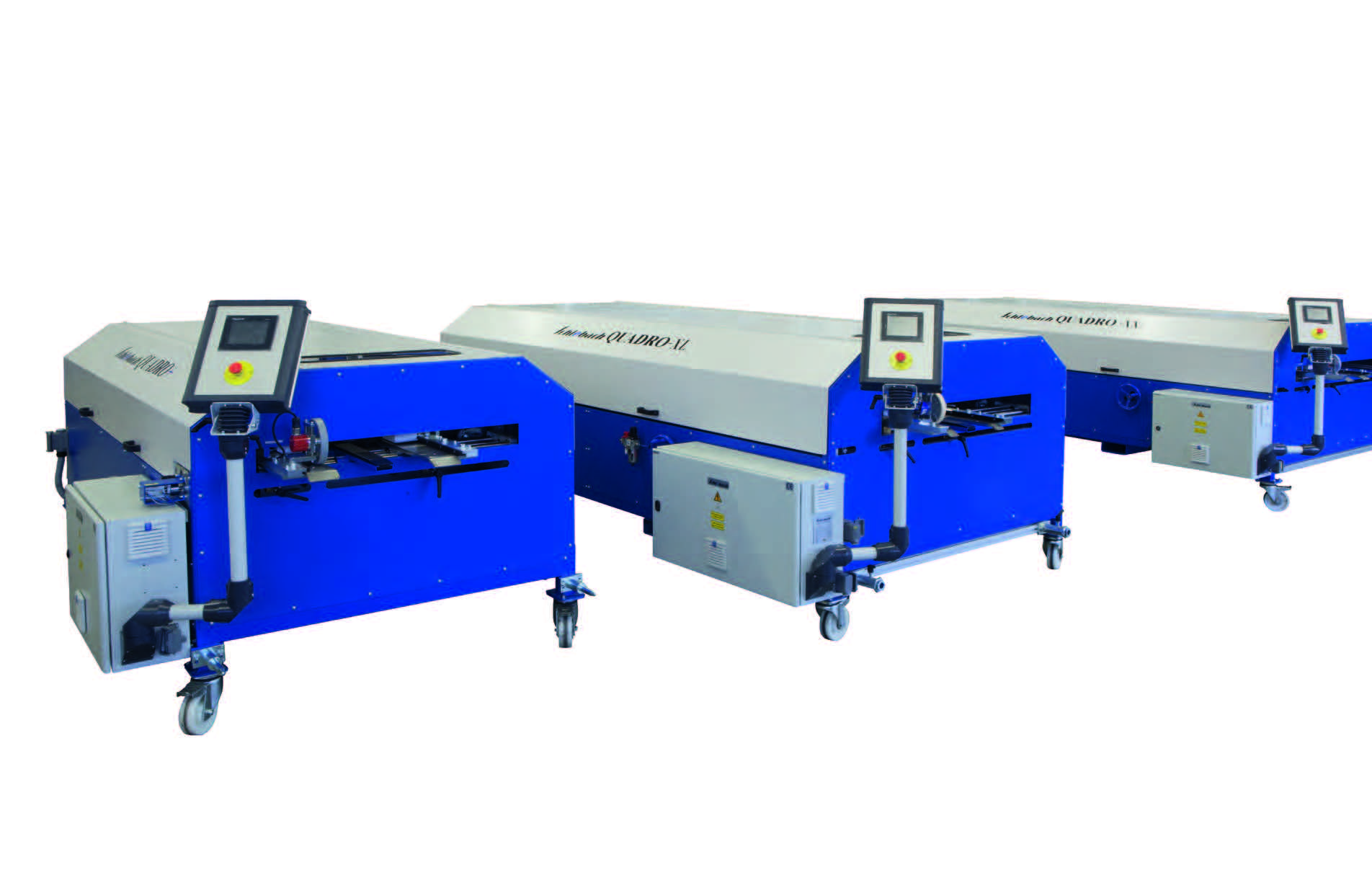

QUADRO Profiling machine
German precision > Kiwi practicality > Unlimited flexibility.
The Schlebach QUADRO is a world-class rollforming machine built for roofers, fabricators, and sheet metal professionals who demand top performance and total flexibility. Whether you’re producing standing seam, snap seam, or façade profiles — the QUADRO delivers speed, accuracy, and reliability that keep your projects moving.

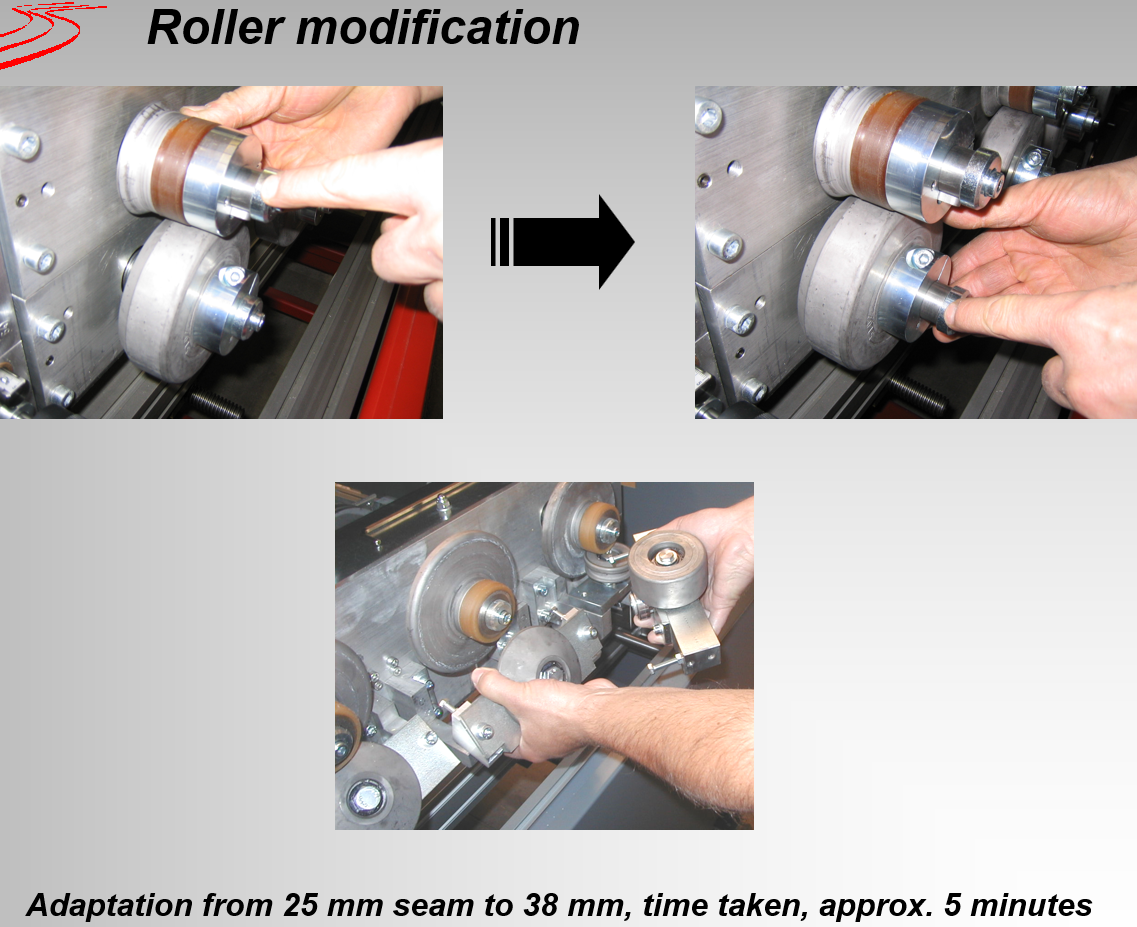

Fast Profile Changeovers

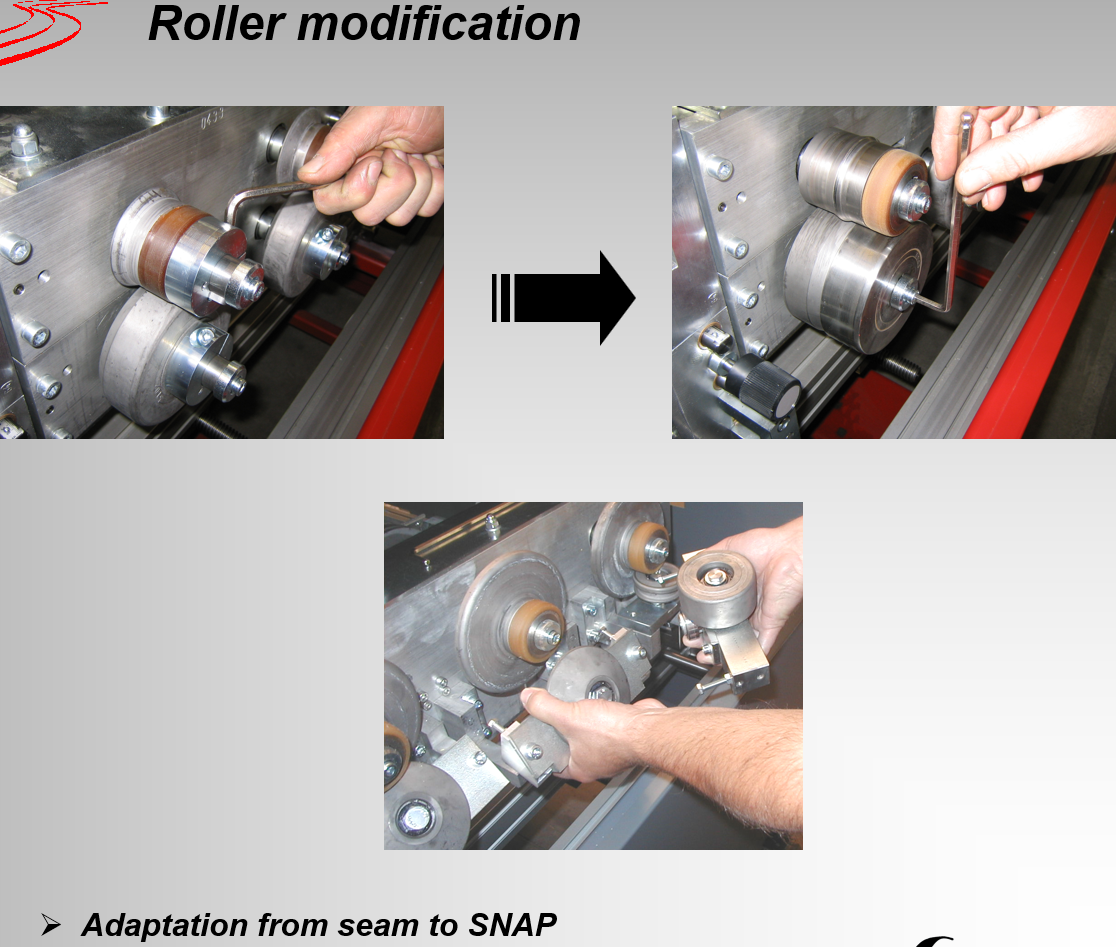

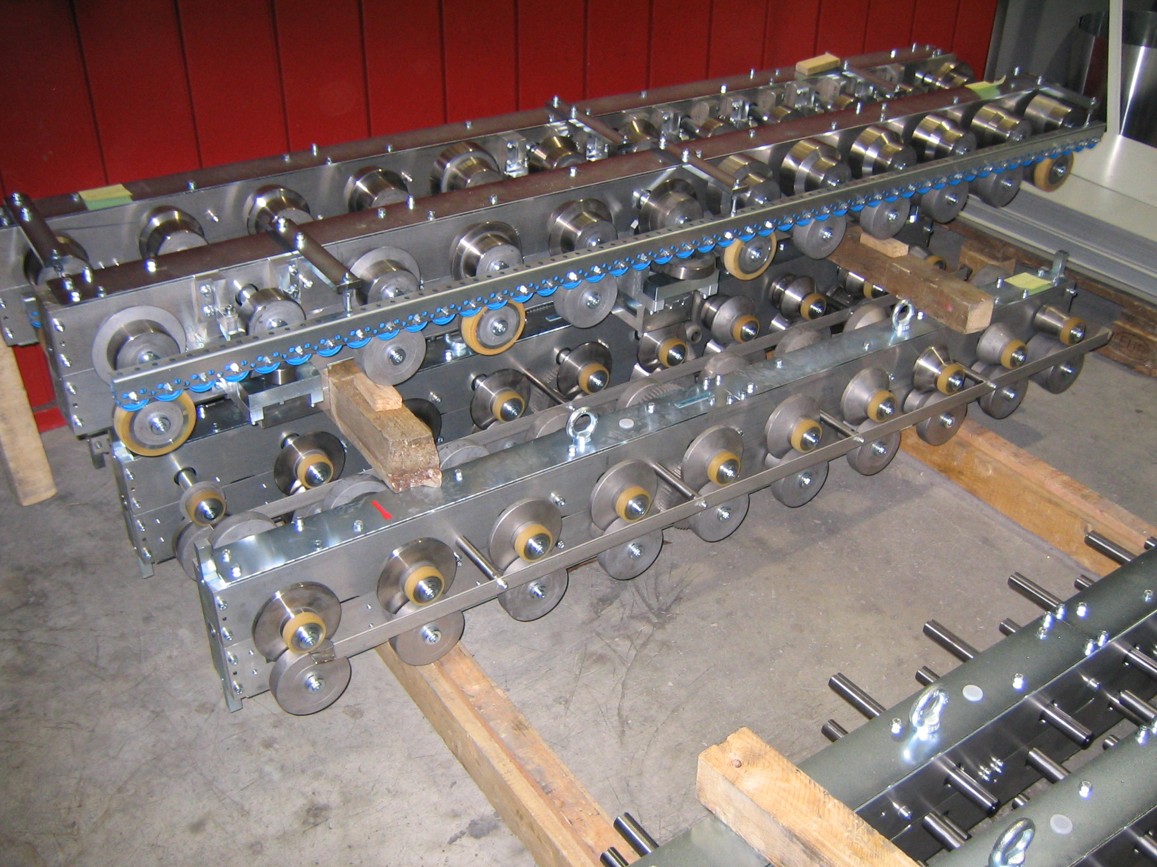

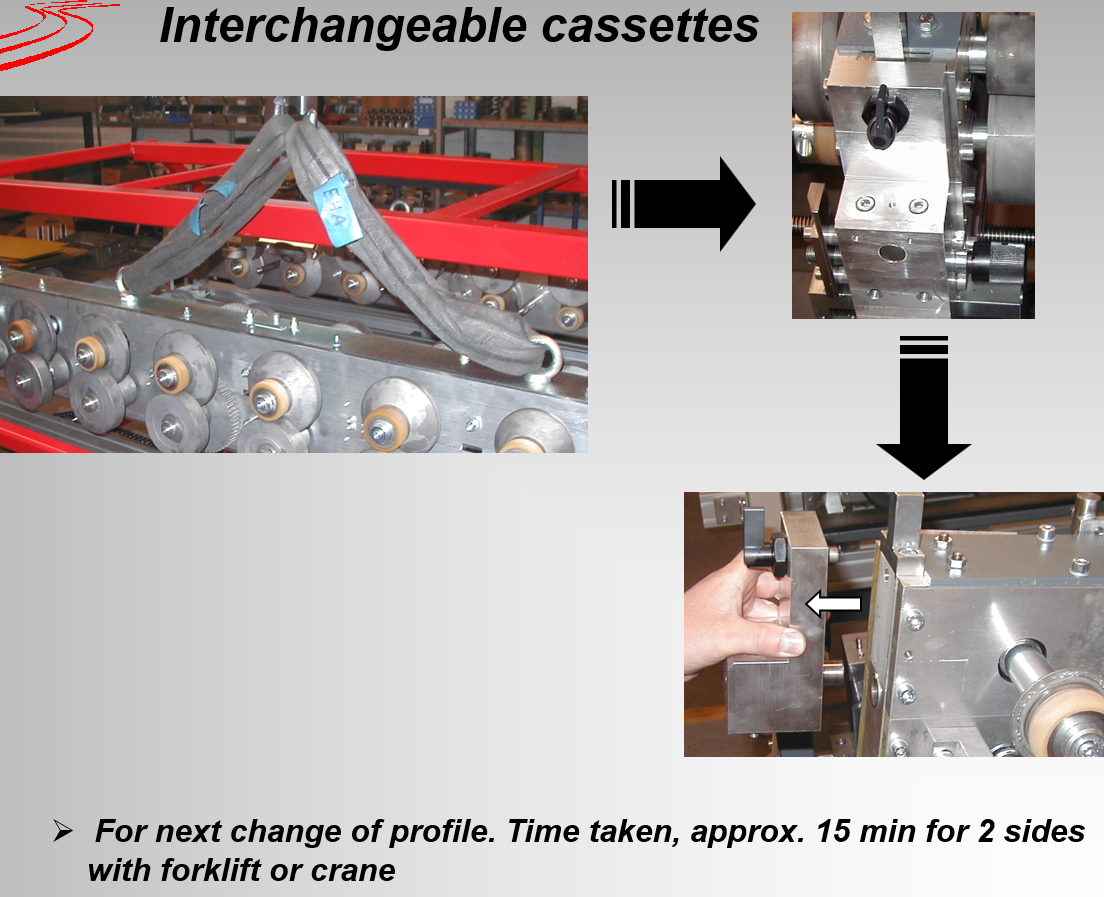

The QUADRO’s clever cassette system lets you switch between profiles in just minutes. Each cassette contains 10 or 12 forming stations, designed for quick release and simple retooling. That means less downtime and more productivity. You can also add new cassettes or accessories anytime to suit future jobs — it’s a machine that grows with your business.

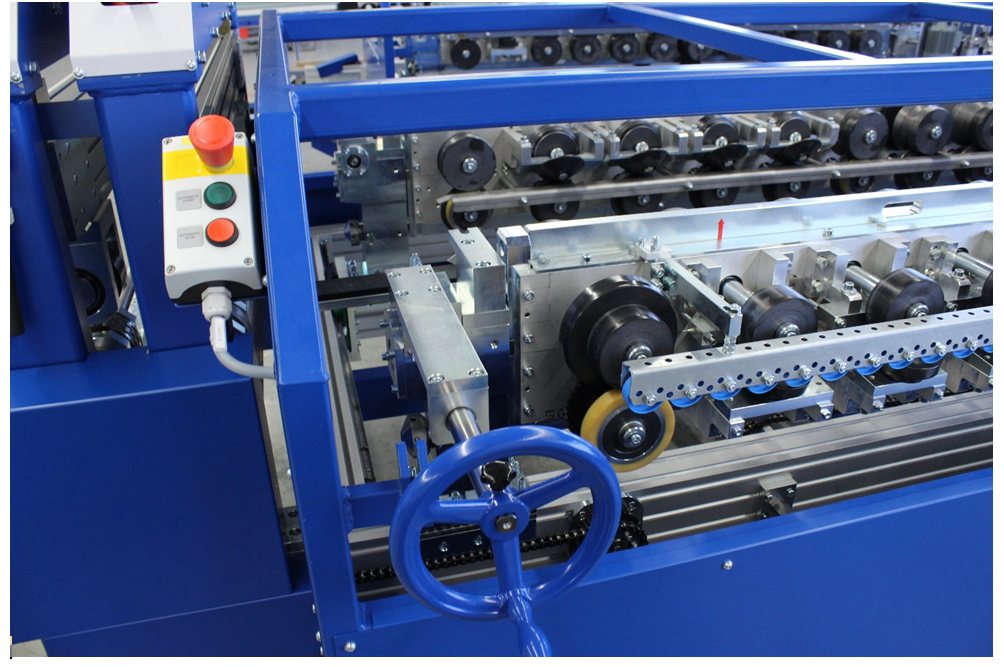

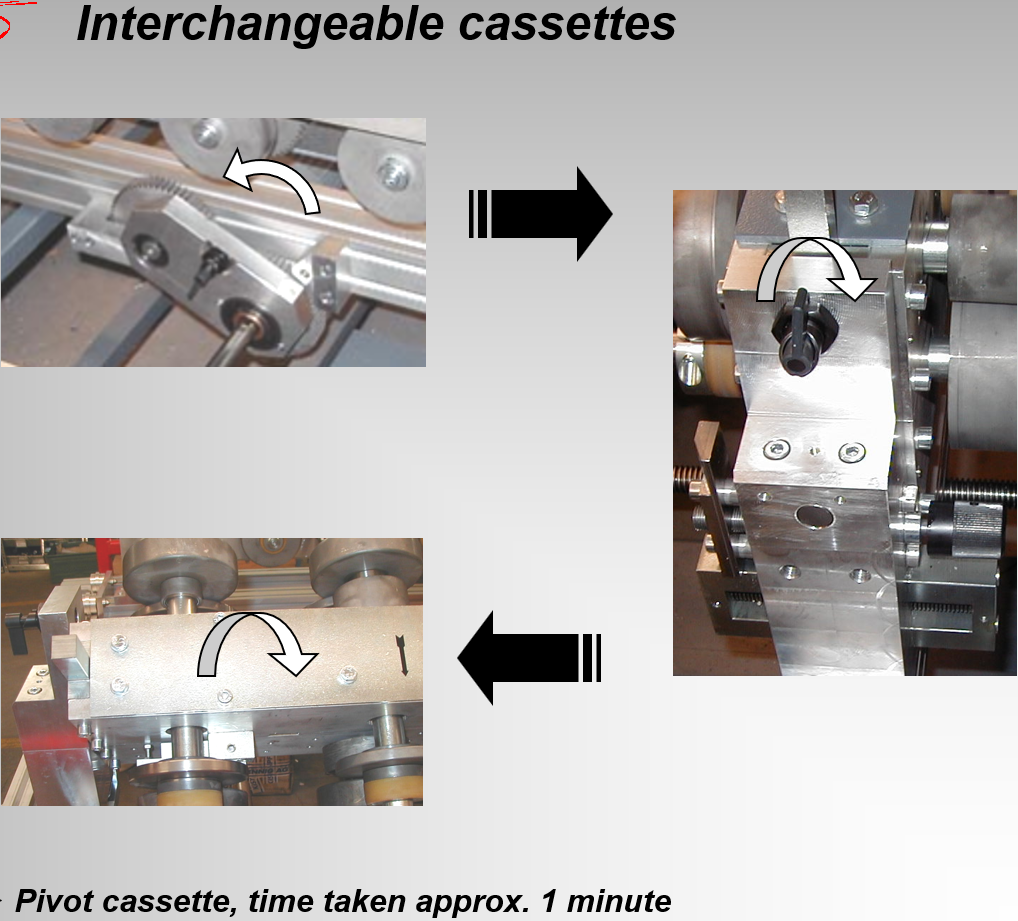

Swivelling Cassette Design

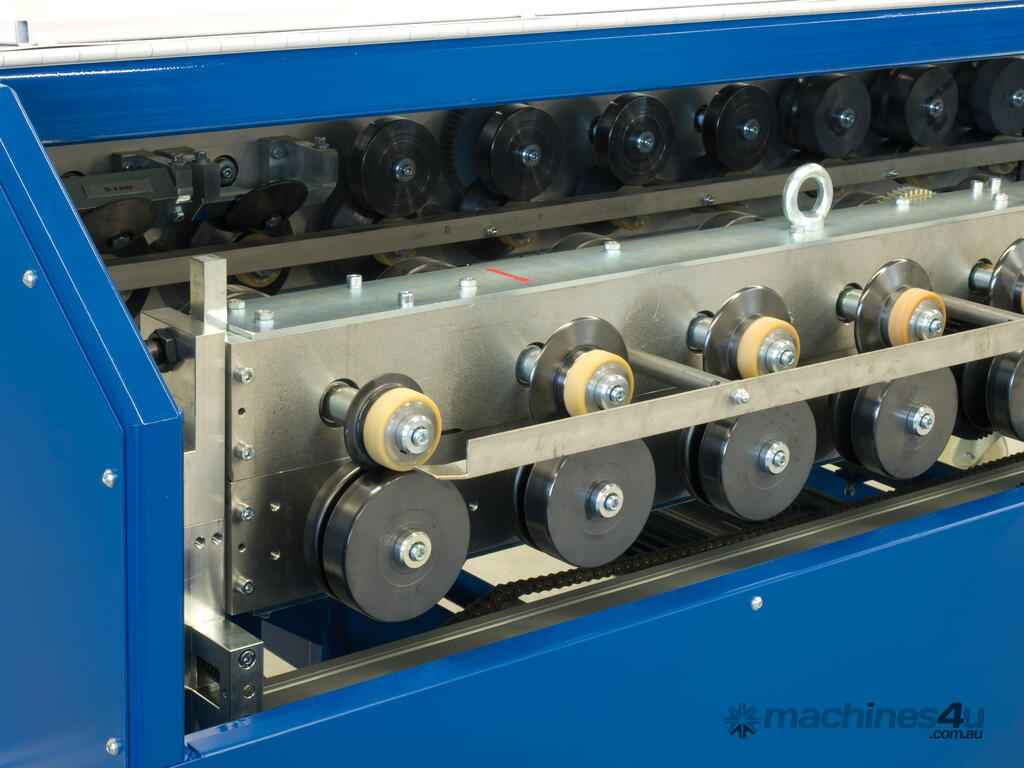

A standout feature is the swivelling cassette, with rollers mounted on both sides. This allows you to run two profiles from the same cassette — for example, roof and façade profiles. One operator can flip between them in under two minutes, without tools. You can even adjust the seam height from 25 to 38 mm, or change from Standing Seam to Snap Seam in about five minutes.
Built for the Real World
The QUADRO sits on a heavy-duty mobile frame with lockable castors, forklift pockets, and lifting eyes for easy transport. It’s made for both workshop and on-site use, giving you full flexibility wherever you’re working. Hinged safety covers keep everything protected yet easy to access for setup or maintenance.
Precision Feeding and Cutting
Sheet infeed width is adjustable from 300 to 800 mm via a smooth handwheel system. Ball-bearing guides keep material tracking perfectly straight. The integrated cross-cutting shear features hardened roller blades for clean, burr-free cuts, and can handle panels as short as 700 mm (or even shorter with optional cutters).
Smart Automation
A PLC touchscreen control makes operation simple and efficient. Just enter your panel length and quantity, and the machine takes care of the rest. The automatic feed, forming, and cutting cycle runs at up to 14 m/min (20 m/min optional), producing consistently accurate panels with minimal manual input.
Reliable, Proven Performance
Like every Schlebach machine, the QUADRO is built to last — engineered in Germany, trusted worldwide. It delivers precise, repeatable results day after day, job after job, with minimal maintenance.
QUADRO MACHINE OPTIONS
Standard roll-forming machine with automatic cross-cutting.
– With LM – Electronic length measuring, in units of 1 mm
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work
– With a connection box in the outlet area
– With cable remote control, start/stop, and emergency stop function
Infeed width: 200 – 800 mm, infinitely adjustable
Mobile on 4 castor wheels (with 2 steering castor wheels)
Standard roll-forming machine with automatic cross-cutting and an integrated slitting unit.
– With LM – Electronic length measuring, in units of 1 mm
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting
– With LS* – Shear Roller to slit the material lengthwise before profiling
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work
– With a connection box in the outlet area
– With cable remote control, start/stop, and emergency stop function
Infeed width: 200 – 800 mm, infinitely adjustable
Mobile on 4 castor wheels (with 2 steering castor wheels)
This Quadro variant offers all the benefits of the base model — now enhanced with a pneumatic clutch and an interface for seamless connection to the AKQUAD4 notching station, QA60 oblique cutter, or UKST bending unit.
– With LM – Electronic length measuring, in units of 1 mm.
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting.
– With PK* – Pneumatic. clutch (incl. pressure supply unit and manometer).
– With an Interface for attachment of QA 60 or UKST.*
– With drive for a pull-out attachment* (pull-out attachment and frame extension not included!).
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work.
– With a connection box in the outlet area.
– With cable remote control, start/stop, and emergency stop function.
Infeed width: 200 – 800 mm, infinitely adjustable
Mobile on 4 castor wheels (with 2 steering castor wheels)
The upgraded Quadro offers all the benefits of the base model — while adding sheet width Slitter, a pneumatic clutch and an integrated pull-out unit for operating the AKQUAD4 notching station, QA60 oblique cutting system, or UKST bending unit. These additions enable complete process automation.
– With LM – Electronic length measuring, in units of 1 mm.
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting.
– With LS* – Shear Roller to slit the material lengthwise before profiling.
– With PK* – Pneumatic. clutch (incl. pressure supply unit and manometer).
– With a driven pull-out device*, consisting of two pairs of rubberised pull-out rollers and a frame extension with an adjustable end-stop for the cross-cut shear roller.
– With an Interface for attachment of QA 60 or UKST.*
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work.
– With a connection box in the outlet area.
– With cable remote control, start/stop, and emergency stop function.
Infeed width: 200 – 800 mm, infinitely adjustable
Mobile on 4 castor wheels (with 2 steering castor wheels)

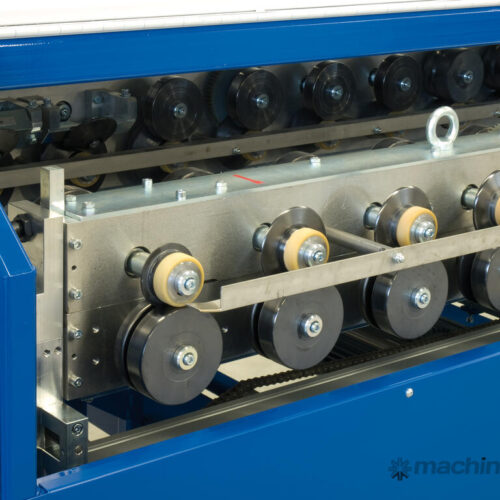

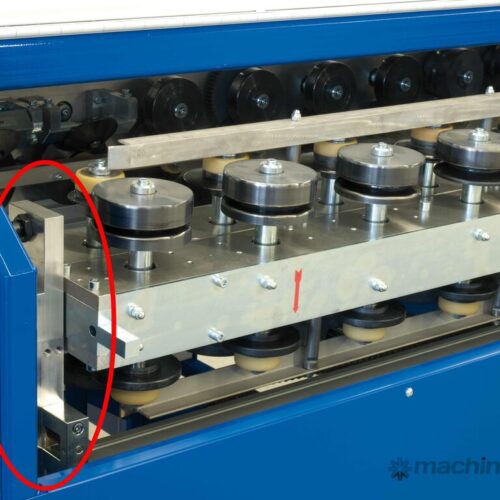

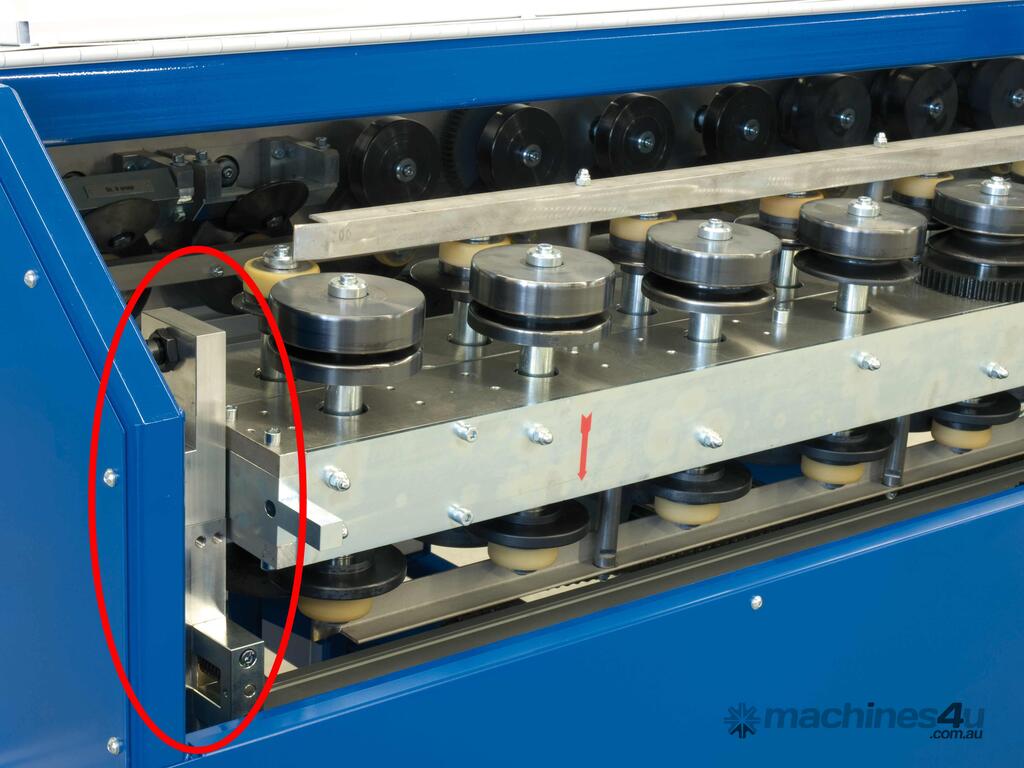

The big difference of the QUADRO-KS variant is its ability to incline/angle the cassette, cut the strip at an angle, and produce tapered lengths in one pass, conical profiling.
. In practical terms:
-
It can feed the metal strip, cut it at an angle, and then profile it — all in one pass.
-
That means it’s particularly suited for long, conically-shaped profiles such as for domes, tent roofs or other curved roof-shell applications, and also long conical “fitting strips” (Passbahnen) where the width or shape changes along length.
-
It supports standard roof and façade profiles too (given its heritage from the QUADRO series), but the “KS” variant adds the conical capability.
So in short, if you need sheet-metal profiling for architectural components where the profile doesn’t have a constant width but is tapered, flared or conical, the QUADRO-KS is a strong fit.
– With LM – Electronic length measuring, in units of 1 mm
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting
– With LS – Shear Roller to slit the material lengthwise before profiling
– With PK – Pneumatic. clutch (incl. pressure supply unit and manometer)
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work
———————————————————–
– For parallel profiling and cutting:
Infeed width 300 – 800 mm, infinitely adjustable
– For conical profiling and cutting
Infeed width 300 – 720 mm if there is a 1° cutting angle
Infeed width 300 – 700 mm if there is a 2° cutting angle
Infeed width 300 – 670 mm if there is a 3° cutting angle
This variant features the fastest profiling rate of the QUADRO range, 20m/min.
It comes with all possible features of QUADRO, sheet width Slitter, a pneumatic clutch and an integrated pull-out unit with two pairs of rubberised rollers and a frame extension with an adjustable end-stop for the cross-cut shear roller to suit any accessory for operating the AKQUAD4 notching station, QA60 oblique cutting system, or UKST bending unit. These additions enable a completely automated process.
– With LM – Electronic length measuring, in units of 1 mm
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting
– With LS* – Shear Roller to slit the material lengthwise before profiling
– With PK* – pneumatic. clutch (incl. pressure supply unit and manometer
– With a driven pull-out device*, consisting of two pairs of rubberised pull-out rollers and a frame extension with an adjustable end-stop for the cross-cut shear roller
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work
– With a connection box in the outlet area
– With cable remote control, start/stop, and emergency stop function
Infeed width: 300 – 800 mm, infinitely adjustable
Mobile on 4 castor wheels (with 2 steering castor wheels)
Drive system: gear motor 2x 2,2 KW — approx. 20 m/min profiling speed
For the production of conical profile webs, the QUADRO-KS is additionally equipped with an LS longitudinal cut-off device in the infeed area. This allows the conical longitudinal cut to be made before profiling.
In this case, the strip is transported, cut at an angle, and profiled in a single operation, irrespective of the profile shape.
This results in a possible field of application, e.g. the economical production of long, conical profile webs for dome or tent roof shapes, or also long conical fitting webs.
– With LM – Electronic length measuring, in units of 1 mm
– With RS – Electrically driven cut-to-length rotary shear for cross-cutting
– With LS – Shear Roller to slit the material lengthwise before profiling
– With PK – Pneumatic. clutch (incl. pressure supply unit and manometer)
– With a mechanical and electrical interface for attachment of QA60
– With a mechanical and electrical interface for attachment of UKST
– With a driven pull-out attachment unit with two pairs of rubberised rollers and a frame extension for 12 station cassettes
– With a Siemens PLC control unit with a 7” colored touch panel for full automatic work
———————————————————–
– For parallel profiling and cutting:
Infeed width 200 – 800 mm, infinitely adjustable
– For conical profiling and cutting
Infeed width 300 – 720 mm if there is a 1° cutting angle
Infeed width 300 – 700 mm if there is a 2° cutting angle
Infeed width 300 – 670 mm if there is a 3° cutting angle

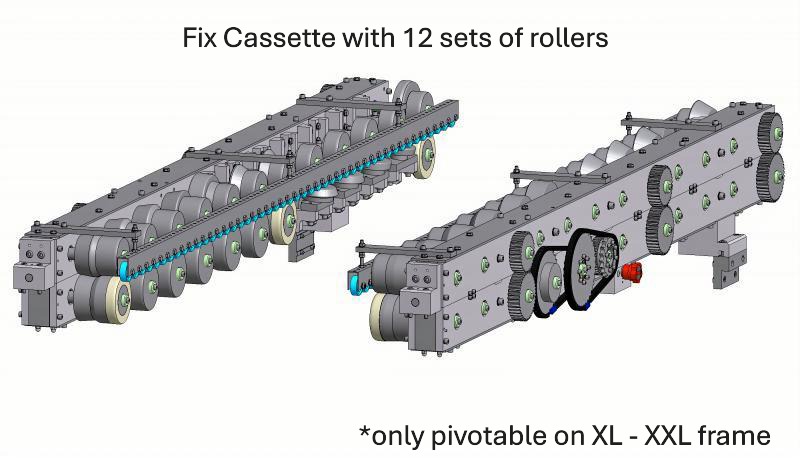

- An extended base frame for holding pivotable cassettes with 12 forming stations
- Convenient pivoting of the cassettes using the handwheel
- Reinforced roller shear for cross cuts
- Reinforced drive unit, optional feed rate 20m/min
Infeed width: 300 – 800 mm
Dimensions: 3830 x 2045 x 1275 mm
Weight: approx. 1,770 kg (with exchangeable cassettes)

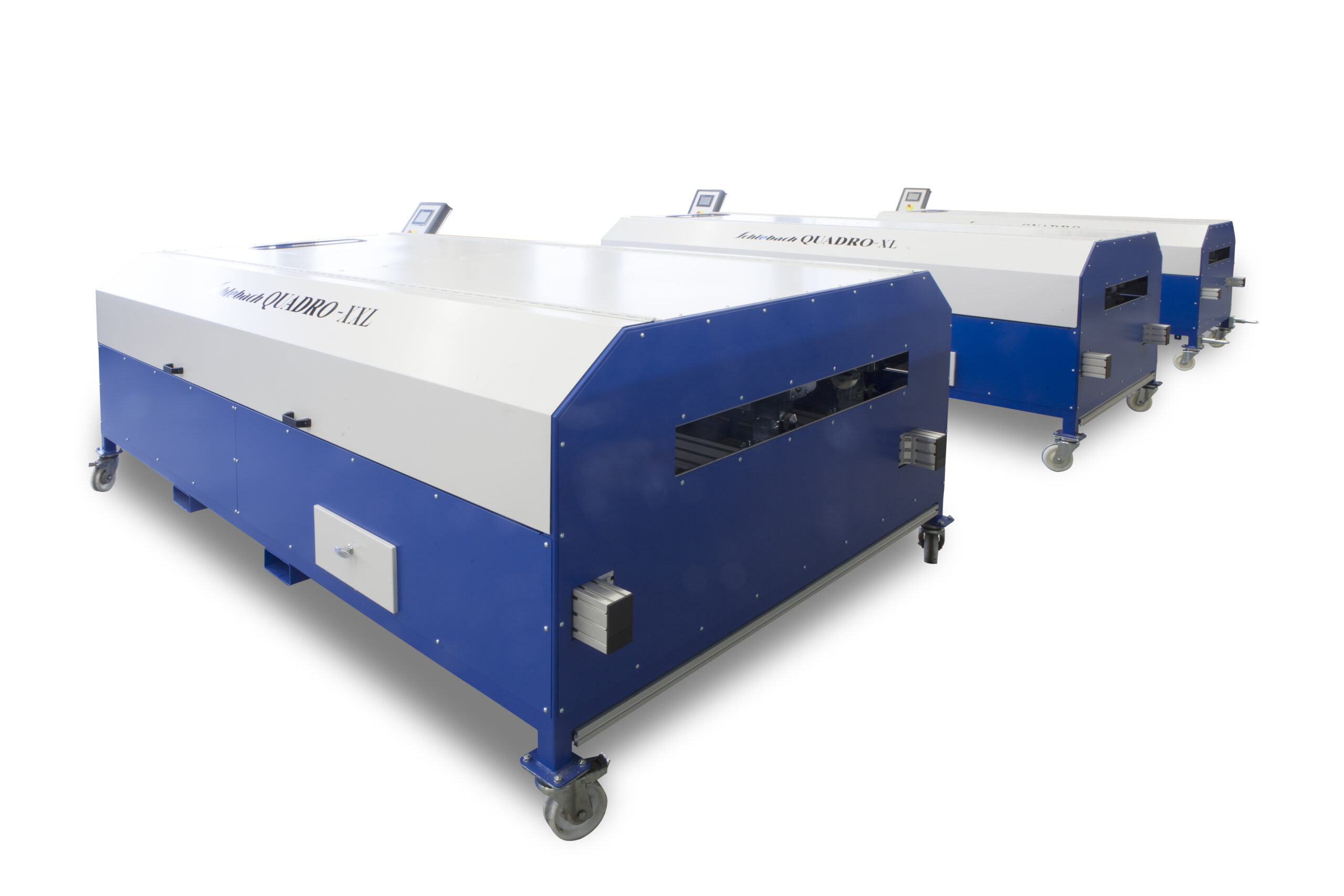

- An extended base frame for holding pivotable cassettes with 12 forming stations

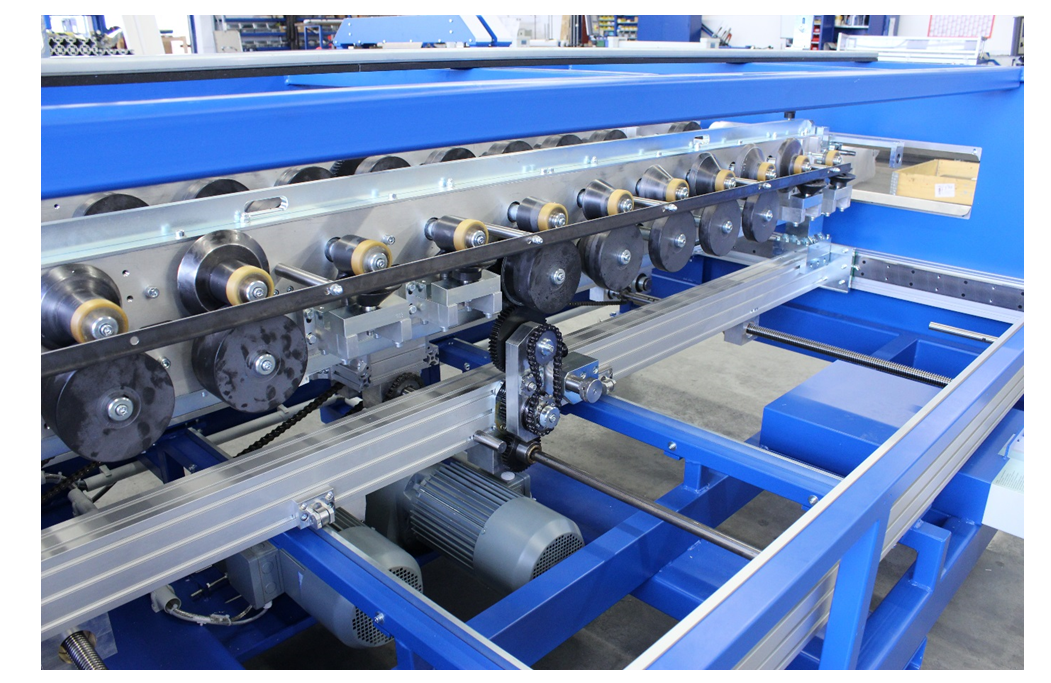

- Run-in width of up to 1250 mm with XXL version
- Convenient pivoting of the cassettes using the handwheel
- Reinforced roller shear for cross cuts
- Reinforced drive unit, optional feed rate 20m/min
Infeed width: 300 – 1250 mm
Dimensions: 3830 x 2380 x 1275 mm
Weight: approx. 1,930 kg (with exchangeable cassettes)

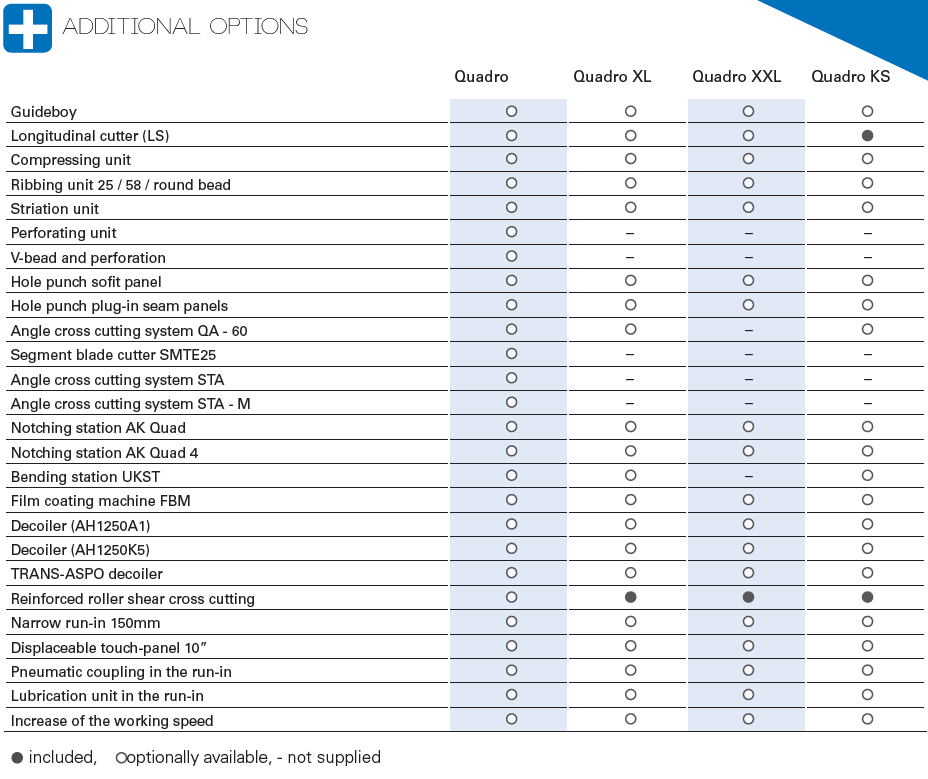

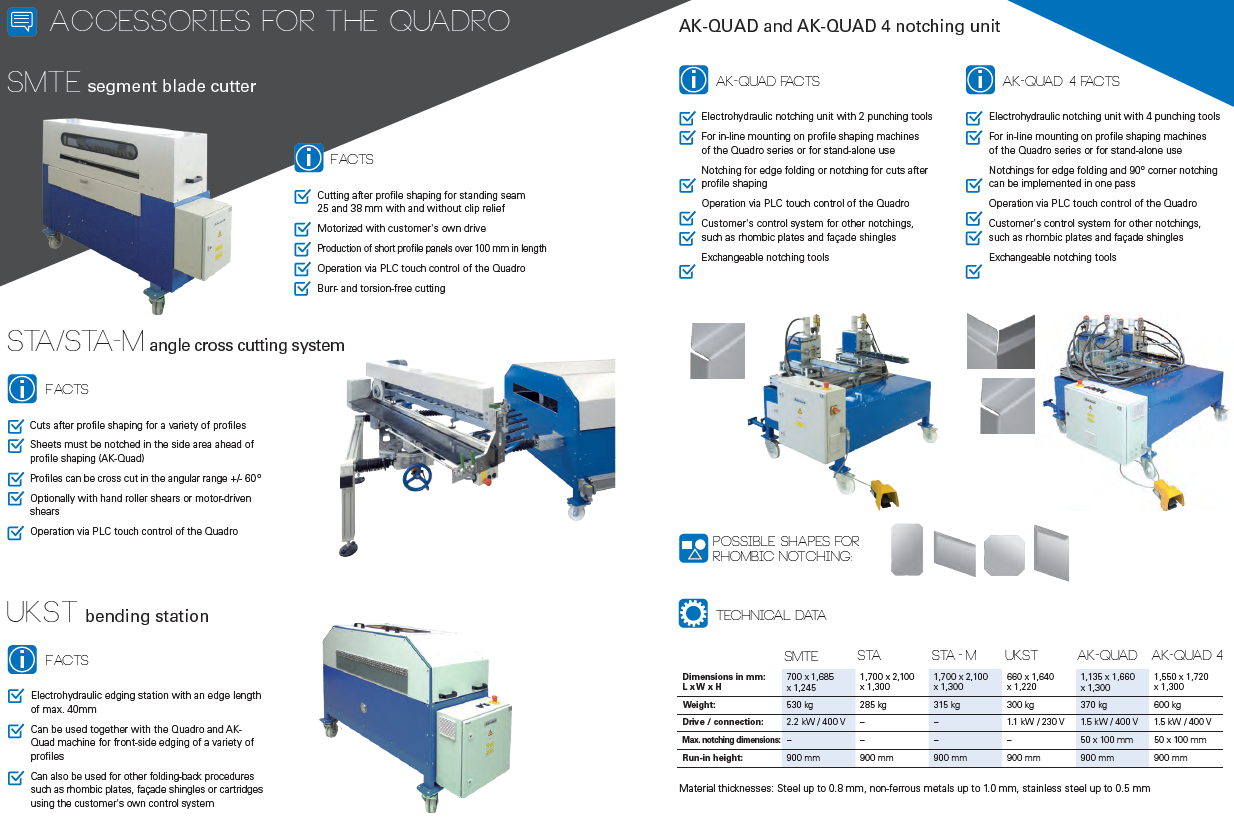

QUADRO ACCESSORIES

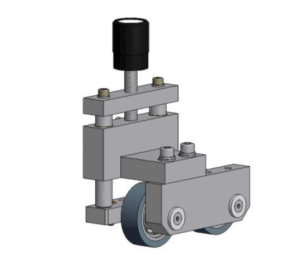

Additional material guide for single-sided profile shaping of panels. The installation of the guideboy on any of the Schlebach profile shaping machine infeed guides requires little effort.
The Guideboy prevents the sheet material from shifting towards the centre of the machine during single-sided profile shaping operations. The required lateral force across the profiling direction may be adjusted by means of the directional angle, as well as an increase of the contact pressure on the sheet metal.
Damage to the material surface is ruled out by the use of high-quality pressure rollers with a special rubber coating.

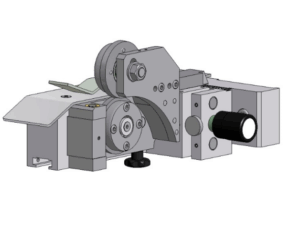

Slitting device for burr-free slitting of coil material before profile shaping. The LS can save time, especially when long-standing seam sheets are being profiled from existing coil widths. This will also dramatically reduce the variety of coil widths that have to be carried in stock, which also results in a reduction in storage costs.
The cutting head is adjustable across the profiling direction to permit edge trimming of the infeed material to the required width. The blades of the cutting head are made of high-quality tool steel to provide maximum service life. Because of the maintenance-friendly design, the cutting discs may be replaced or reground with very little effort when they have worn down.

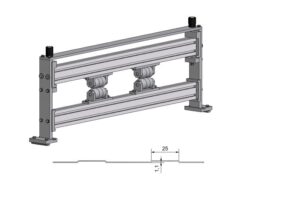

Ribbing attachment to shape longitudinal ribs with a width of 25 mm and a depth of approximately 1.1 mm into the visible surface of profiled panels. The ribbing attachment consists of a guide unit, upper and lower ribbing rollers with brackets. The ribbing attachments are equipped with high-quality ribbing rollers on ball bearings to ensure maximum protection of the surface of the panels being profiled. The ribbing attachments are continuo usly adjustable across the profile shaping direction. This ensures that the distance of the ribs that are pressed into the panels may be adjusted as required.
Note: The profiling of ribs is not possible on conical shapes.

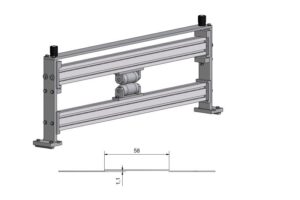

Ribbing attachment to shape longitudinal ribs with a width of 58 mm and a depth of approximately 1.1 mm into the visible surface of profiled panels. The ribbing attachment consists of a guide unit, upper and lower ribbing rollers with brackets. The ribbing attachments are equipped with high-quality ribbing rollers on ball bearings to ensure maximum protection of the surface of the panels being profiled. The ribbing attachments are continuously adjustable across the profile shaping direction.
Note: The profiling of ribs is not possible on conical shapes.

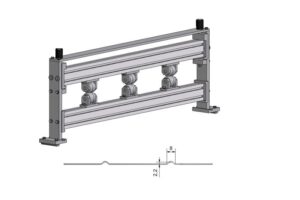

Ribbing attachment to shape round ribs with a width of 8 mm and a depth of approximately 2.2 mm into the visible surface of profiled panels. The ribbing attachment consists of a guide unit, upper and lower ribbing rollers with brackets. The ribbing attachments are equipped with high-quality ribbing rollers on ball bearings to ensure maximum protection of the surface of the panels being profiled. The ribbing attachments are continuously adjustable across the profile shaping direction. This ensures that the distance of the ribs that are pressed into the panels may be adjusted as required.
Note: The profiling of ribs is not possible on conical shapes.

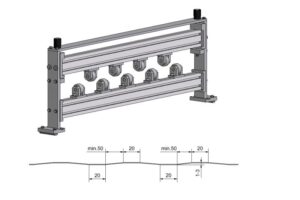

A striation unit to create small vertical striations with a width of 20 mm and an adjustable depth of 1 – 3 mm. The distance between the individual striations is at least 50 mm. The striation unit consists of a guiding unit as well as four upper and five lower striation rollers. Striation units are equipped with high-quality ball-bearing striation rollers that provide maximum protection to the surface of the profiled plates. The striation unit is continuously adjustable perpendicular to the profiling direction. This means that the distance between the striations that are impregnated into the plates is variable.
Note: The profiling of striations is not possible on conical shapes.

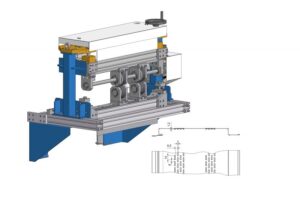

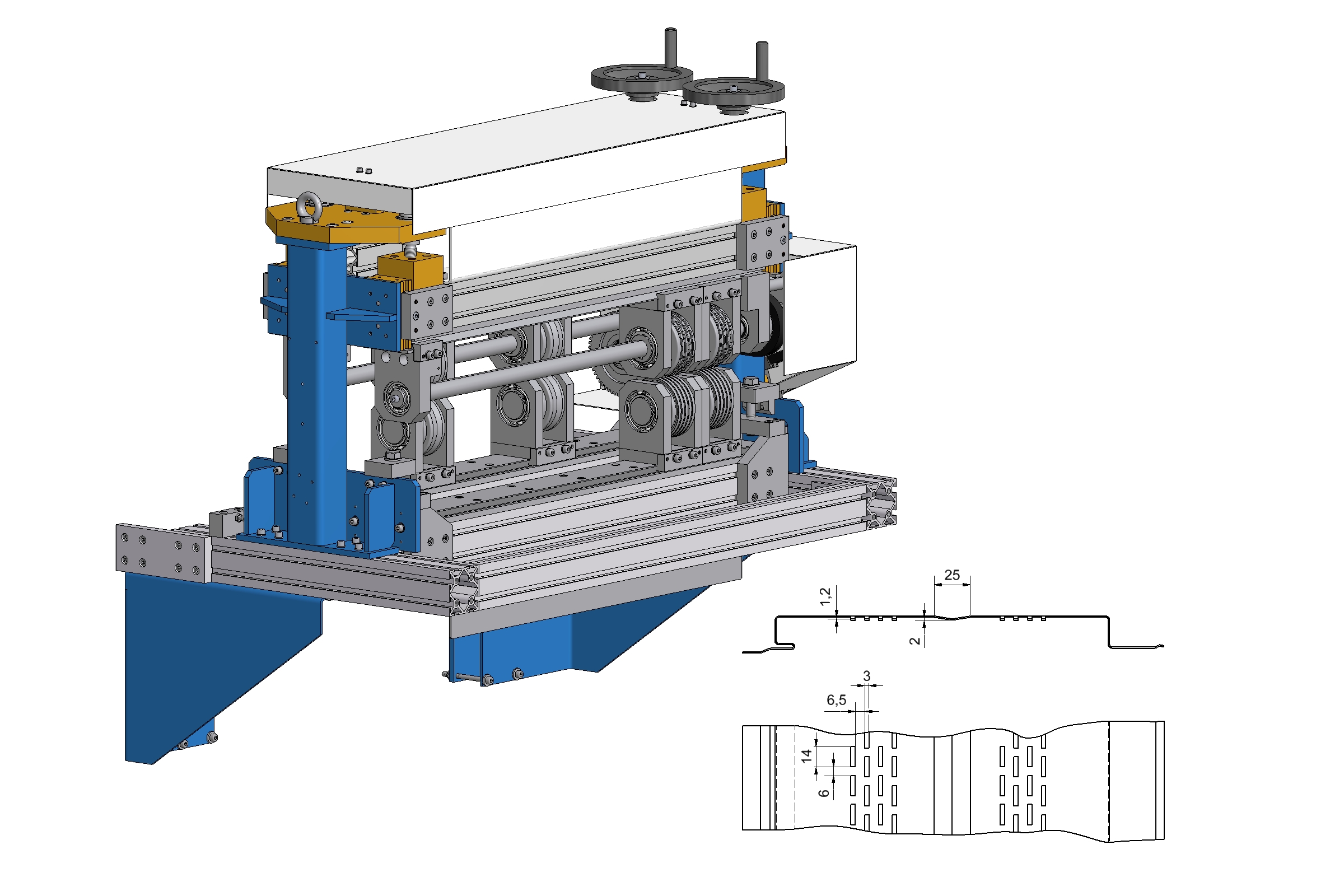

A perforation device to perforate the visible area of profiled panels of Soffit-panels or reveal panels. The purpose of perforation these panels are, for example, to provide rear ventilation or sound proofing on facades or ceiling coverings. Depending on the width of the profiled panel, either one or two perforations with 4 perforation rows each may be applied to the panels. The perforation unit is flanged to the exit area of the QUADRO profile shaping machine. Two powered perforation units with 4 perforation rows are mounted on a sturdy welded frame. The unit is driven by a chain that is connected to the last station of the profiling cassette. The perforation tools are made of wear-resistant tool steel. The perforation unit is also suitable for retrofitting.
Note: The perforating of conical shapes is not possible.
A striation unit to create small vertical striations with a width of 20 mm and an adjustable depth of 1 – 3 mm. The distance between the individual striations is at least 50 mm. The striation unit consists of a guiding unit as well as four upper and five lower striation rollers. Striation units are equipped with high-quality ball-bearing striation rollers that provide maximum protection to the surface of the profiled plates. The striation unit is continuously adjustable perpendicular to the profiling direction. This means that the distance between the striations that are impregnated into the plates is variable.
Note: The profiling of striations is not possible on conical shapes.

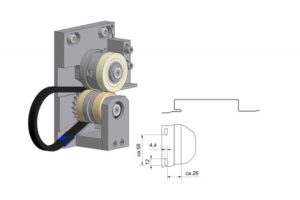

Soffit-panel punch to cut slots into the mounting bracket during profiling. A rotating punch that is driven by the material feeder cuts evenly spaced 4.4 x 12 mm oblong holes at intervals of approx. 56 mm into the bracket.

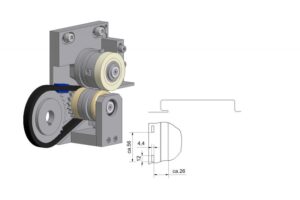

Wall-panel punch to cut slots into the mounting bracket during profiling. A rotating punch that is driven by the material feeder cuts evenly spaced 4.4 x 12 mm oblong holes at intervals of approx. 56 mm into the bracket.

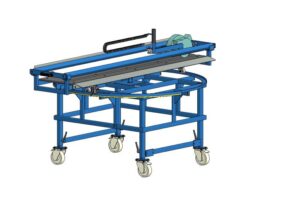

Cross-cutting assembly for oblique cuts on profiled panels is made of non-ferrous metals. The assembly consists of a stable welded base frame, a swivelling table with carriage and a high-quality circular saw made by Bosch that is supplied with special blades for copper (type SBC with a hard chrome finish) or alternatively aluminium and titanium zinc (type SBS with steam-treated surface). The cutting angle across the profile shaping direction is continuously adjustable from 0° to ±60°. The connecting components required to flange the assembly to a profile shaping machine are delivered with the QA. The cross-cutting assembly can be installed after the profile shaping unit of different profile shaping machines. The existing length-measuring device may be used.
The motor-driven cutting unit for standing seam profiles for a height of 25 mm is installed downstream from the QUADRO profiling machine. The cutting unit is programmed and integrated into the process using the control system of the profiling machine. The cutting guide is set using the width adjustment system of the profiling machine.
Using the cutting unit, it is possible to cut even short profile cladding panels starting at 100 mm without flash or twisting.
The STA unit is flanged to the exit area of the QUADRO profile shaping machine. After the profile shaping process and when the lateral profiling areas have been notched by an AK–QUAD, profiled panels may be cut at an angle ranging from 0° to ±60°. The Quadro machine controller calculates the eventual cutting position using the programmed profile parameters. When the desired length is reached, the machine controller will stop the QUADRO’s profiling process. The operator adjusts the cutting unit for the required angle. Now the profile plate is clamped to the supporting table of the cutting unit by means of the manual hold-down device, and then it is cut with the manual roller shear.
Processable materials:
- Ferrous metals (≤ 400N/ mm²) 0.5 mm – 0.7 mm
- Stainless steel (≤ 700N/ mm²) 0.4 mm – 0.5 mm
- Non-ferrous metals (≤ 700N/ mm²) 0.6 mm – 0.8 mm
Dimensions (L x W x H): 1,700 mm x 2,100 mm x 1,300 mm
Weight: 285 kg

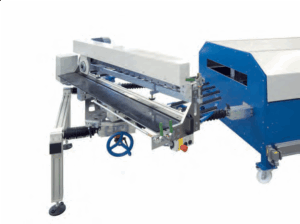

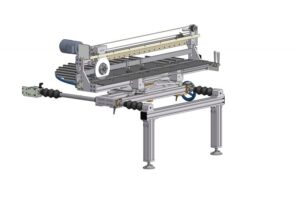

The STA-M unit is flanged to the exit area of the QUADRO profile shaping machine. After the profile shaping process and when the lateral profiling areas have been notched by an AK–QUAD, profiled panels may be cut at an angle ranging from 0° to ±60°. The Quadro machine controller calculates the eventual cutting position using the programmed profile parameters. When the desired length is reached, the machine controller will stop the QUADRO’s profiling process. The operator adjusts the cutting unit for the required angle. Now the profile plate is clamped to the supporting table of the cutting unit by means of the manual hold-down device, then it is cut with the motorised roller shear by the operator pressing a button.
Processable materials:
- Ferrous metals (≤ 400N/ mm²) 0.5 mm – 0.7 mm
- Stainless steel (≤ 700N/ mm²) 0.4 mm – 0.5 mm
- Non-ferrous metals (≤ 700N/ mm²) 0.6 mm – 0.8 mm
Dimensions (L x W x H): 1,700 mm x 2,100 mm x 1,300 mm
Weight: 315 kg

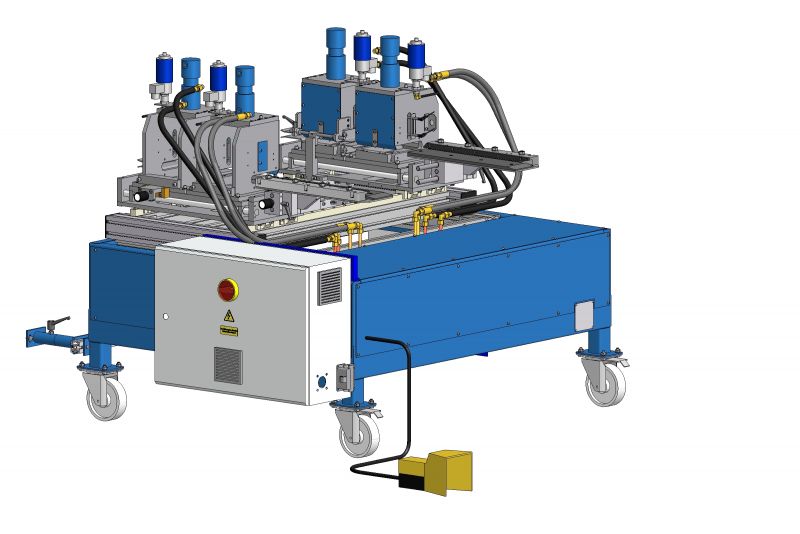

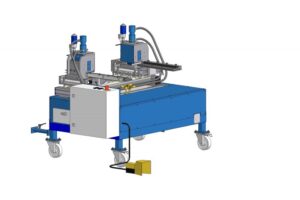

Electrohydraulic notching unit AK-QUAD that is designed as an independent unit that is flanged on the QUADRO series of profile shaping machines or the special notching units to produce rhombic shapes, shingles or tiles. The notching unit is installed in front of the QUADRO profile shaping machine, or it may be operated by means of an independent controller. The controller of the profiling system is programmed to support the notching sequence for the integration into the production process. The required tool holders, along with the hydraulic equipment, are installed on an additional unit that is connected to the QUADRO control unit. The basic set includes a tool kit to notch Soffit panels (reveal panels). Tool kits are interchangeable, and other types are available for specific shapes and profiles. We can produce tools to customer specifications. Available cut-out dimensions are 30 x 100 mm, 40 x 100 mm and 50 x 100 mm. The AK-QUAD can also be used as a standalone notching unit. With the appropriate tooling, the unit can cater for applications producing rhombic shapes, shingles or tiles.

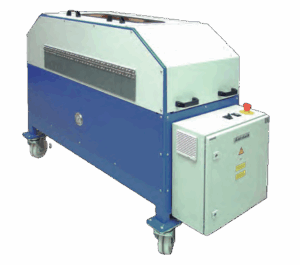

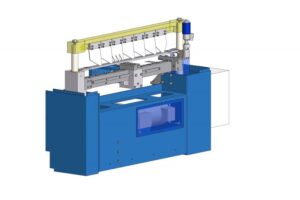

The electro-hydraulic bending station is installed downstream from the QUADRO profiling machine. The bending sequence is programmed and integrated into the automated process using the control system of the profiling machine.
In addition, the bending station is equipped with its own control system and can therefore also be used independently for other bending processes such as rhombuses, façade clapboards/shingles, and coffers.
Dimensions L x W x H: 660 x 1640 x 1220mm
Weight: 300kg
Drive / Connection: 1.1 kW / 230 V
Run-in Height: 900 mm

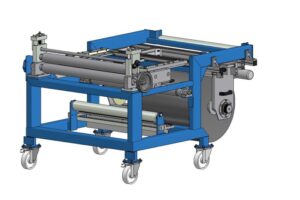

To bond acoustic barriers or insulating film as well as felt rolls, to the plates during the profile shaping operation. The foil / felt material that must be bonded is clamped to a mandrel. With the help of a forklift truck, the FBM may be loaded with the required rolls from the side. A built-in edge control system ensures smooth unwinding of the material with simultaneous precise bonding of the foil / felt to the bottom of the sheet metal. The pressure rollers mounted at the front apply the foil / felt material without bubbles. During the bonding process, the protective foil on the adhesive side of the foil / felt material is removed automatically and simultaneously wound onto a separate shaft.
Foil roller widths that may be processed: 150 mm – 730 mm
Max. Foil roller diameter: 280 mm
Inner/clamping diameter: 76 mm
Working height: 890 mm
Terminal voltage: 230 V / 50 Hz / 1 Ph.
Dimensions (L x W x H): 1750 mm / 1720 mm / 1150 mm
Weight: 700 kg
Suitable for the following materials:
- Non-ferrous metals to 0.8 mm
- Sheet steel up to 0.7 mm
- Stainless steel up to 0.5 mm

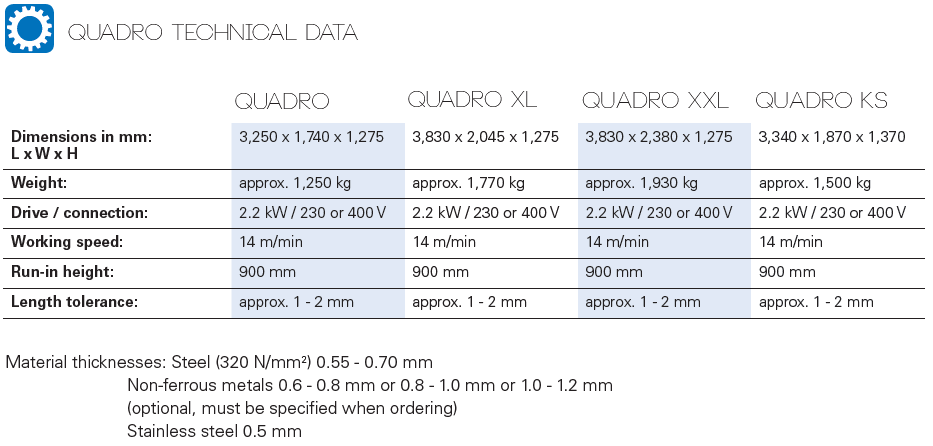

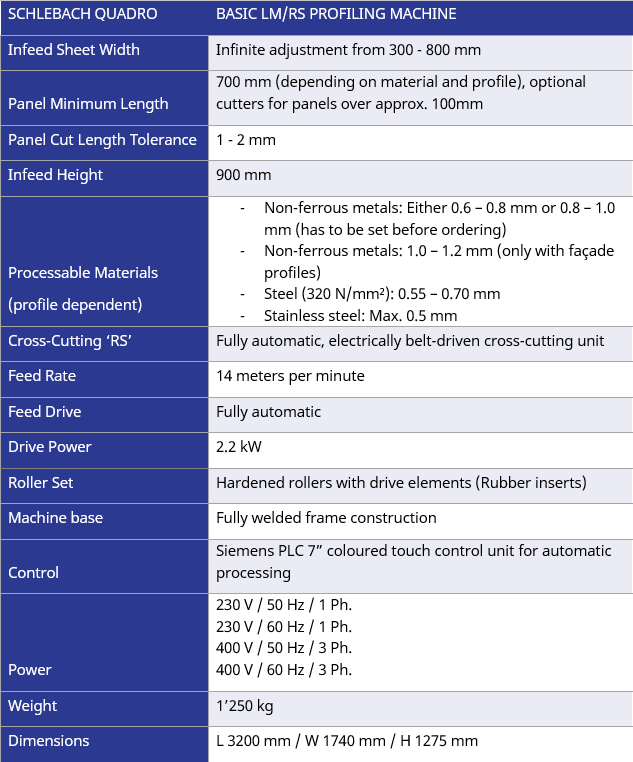

Technical data
FEATURES

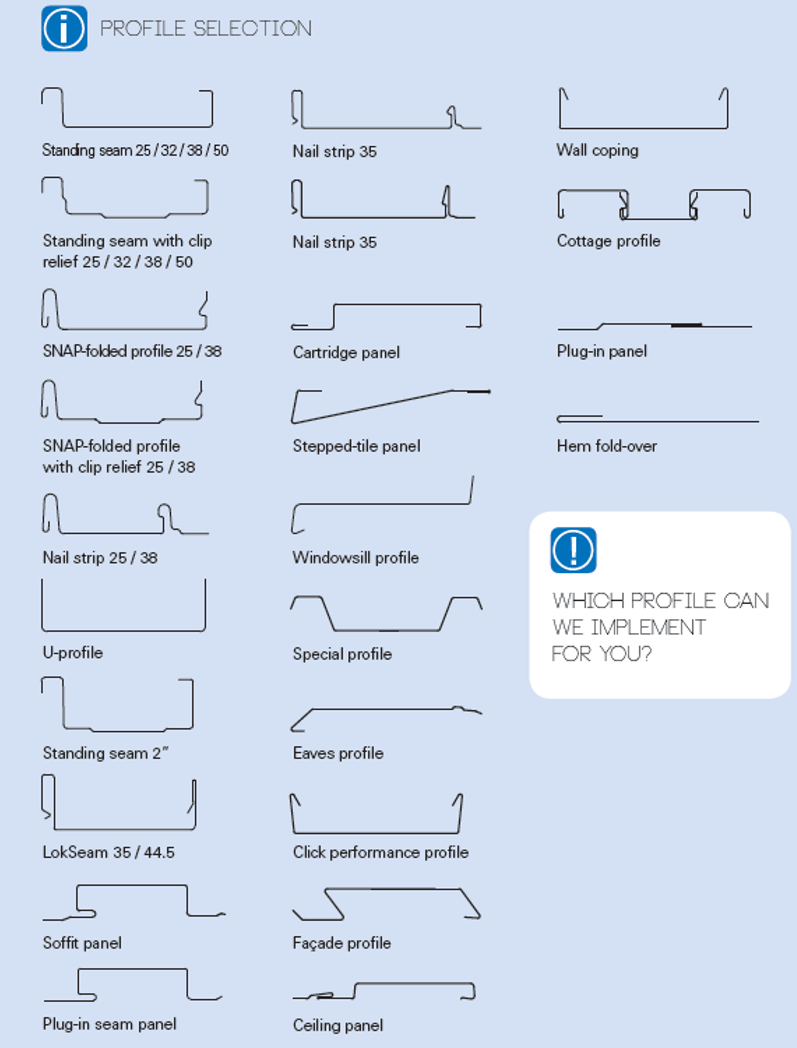

- Flexibility: Selection of a variety of roof and façade profiles / special profiles to meet customers’ wishes.
- Quick-change cassette system: Switch profiles in minutes, suitable for single or double-sided profiling, the sturdy bolt-down offers a much higher rigidity and thus improves the quality of the resulting profile.
- Versatility: An innovative design lets customers select equipment based on their specific needs, meaning the machine can be customised for different applications.
- Safety First: Hinged covers secured by safety devices protect the machine and the operator, while making adjustments easier.
- Compact design: Despite its industrial performance, the machine takes up minimal workshop space and sits on caster wheels, making it convenient to shift around coil storage systems or easily stored away.
- Transport: Mounted on a sturdy base frame with four wheels, two of which have brakes to prevent unintentional movement. It also includes lifting eyes and forklift pockets, ensuring safe transport on site.
- On-site and off-site production: Mobile roll forming machines can be brought to a job site to produce components on demand, reducing transport costs. Alternatively, manufacturing components off-site in a controlled environment offers peak efficiency.
FRIBESCO’s reasons:
Why Choose the QUADRO?
✅ Fully automatic operation for maximum productivity
✅ Stepless width adjustment for unmatched flexibility
✅ Robust, hardened roller technology for precision and durability
✅ Suitable for all standard roofing materials
✅ Compact design, easy to integrate into production workflows
The Schlebach Quadro gives professional profilers the edge: faster throughout, consistent accuracy, and long-term reliability.
